HF3FF-012-1ZST

Quantity	excl. VAT	VAT incl.
1 - 4	2.41£	2.89£
5 - 9	1.43£	1.72£
10 - 20	1.27£	1.52£

Quantity	U.P
1 - 4	2.41£	2.89£
5 - 9	1.43£	1.72£
10 - 20	1.27£	1.52£

Delivery in 2-3 days, with postal tracking!

Quantity in stock : 20

Set of 1

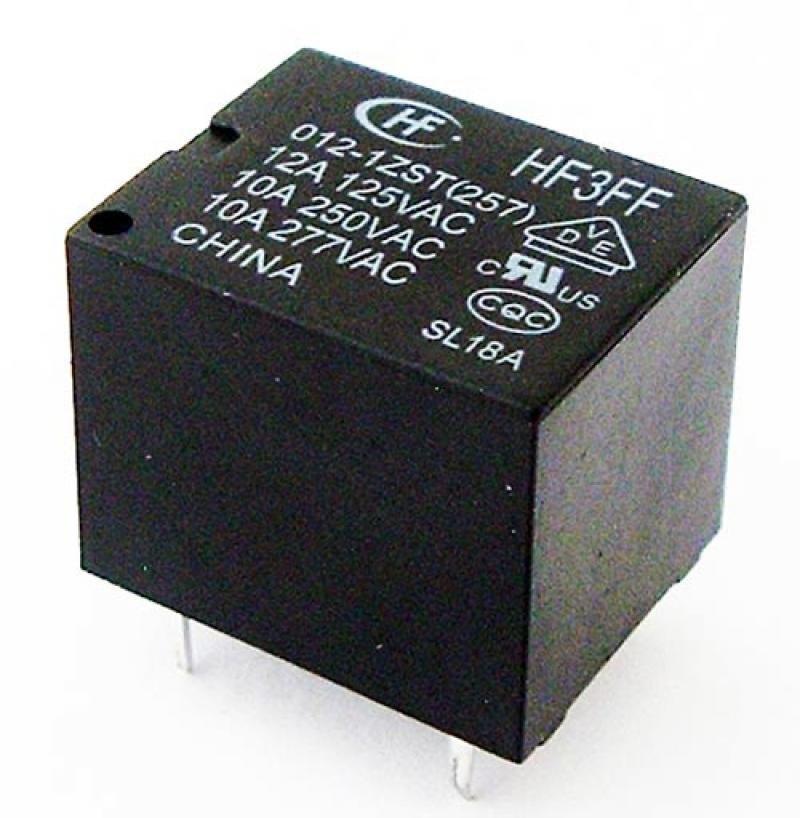

HF3FF-012-1ZST. Assembly/installation: PCB. Pitch of terminals: 2mm. Operating temperature: -40...70°C. Housing Dimensions: 19x15.5x15.2mm. External dimensions: 19x15.5x15.2mm. Contact material: AgSnO2. Configuring Contacts: SPDT. Relay type: electromagnetic. Coil rated voltage: 12V DC. Max current: 10A. Switching voltage: MAX. Coil resistance: 400 Ohms. Tension: 15.6VDC. Switching time: 10ms. Time to switch back: 5ms. Coil Power Consumption: 360mW. Contact resistance: 100m Ohms. Max current/contact (VDC): 10A / 28VDC. Max current/contact (VAC): 10A / 277VAC. Original product from manufacturer Hongfa Relay. Quantity in stock updated on 30/07/2025, 05:25.
